M1-AA2300 series

Atomic absorption spectrophotometer

Fifth-generation atomic absorption, three atomisation modes on one bench

M1-AA2300 series products are the fifth generation of atomic absorption spectrophotometers developed by M1 Teck. The platform combines optical dual-beam stability, parallel flame and graphite furnace atomisation, intelligent software and layered safety monitoring to support trace metal analysis across environmental, food, pharmaceutical and industrial laboratories.

Flame, graphite furnace and hydride generation share one optical bench. The flame atomiser and graphite furnace are mounted in parallel, which shortens the light path and keeps optical energy loss minimal; a single click switches modes within one second and the system re-positions itself automatically.

Request a quote Download the catalogue

M1-AA2300 Series — M1-AA2300 series atomic absorption spectrophotometer

Lamp holder

8 positions

Mode switching

Within one second

Atomisation

Flame · furnace · hydride

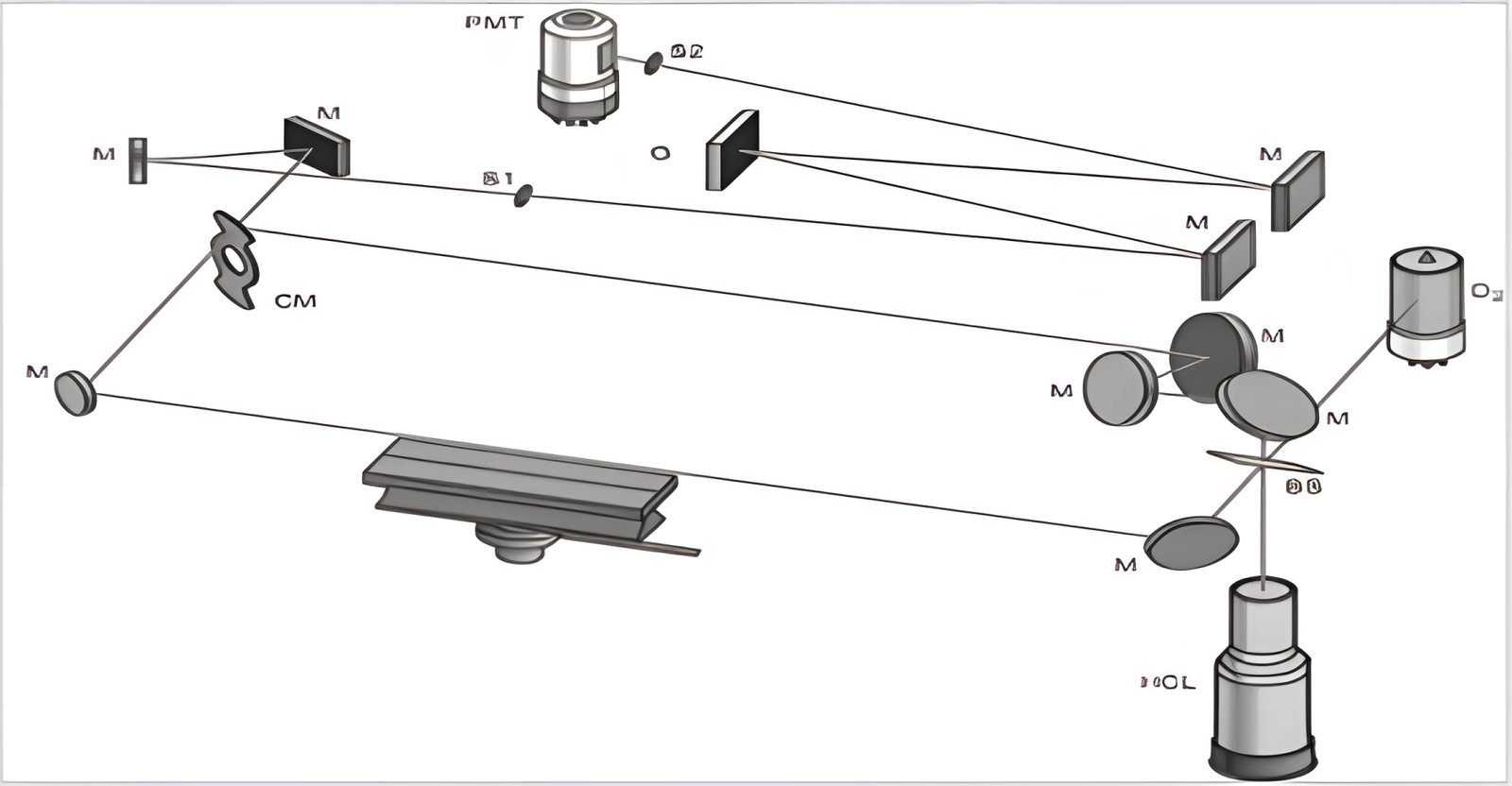

System design

Optical dual-beam system

+Flame mode defaults to optical dual beam; graphite furnace mode automatically selects electronic dual beam.

+Integral aluminium casting optical platform, providing enhanced resistance to interference.

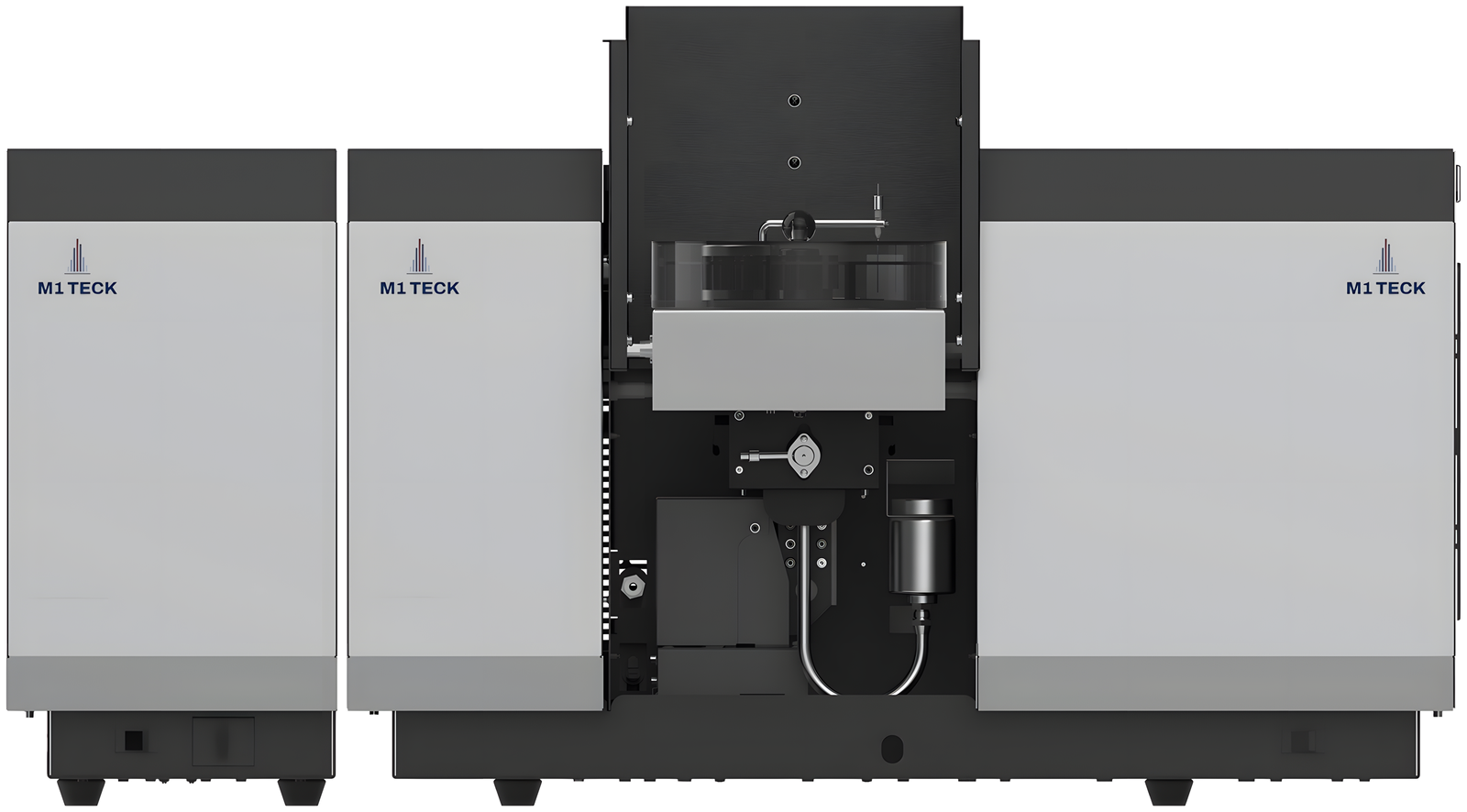

Parallel dual atomisation system

+One click in the software switches between flame atomic absorption, graphite furnace atomic absorption and hydride generation within one second.

+On switching modes the system automatically adjusts to the optimal position for graphite furnace and flame work.

+The parallel layout significantly shortens the light path, with minimal loss of optical energy and high sensitivity.

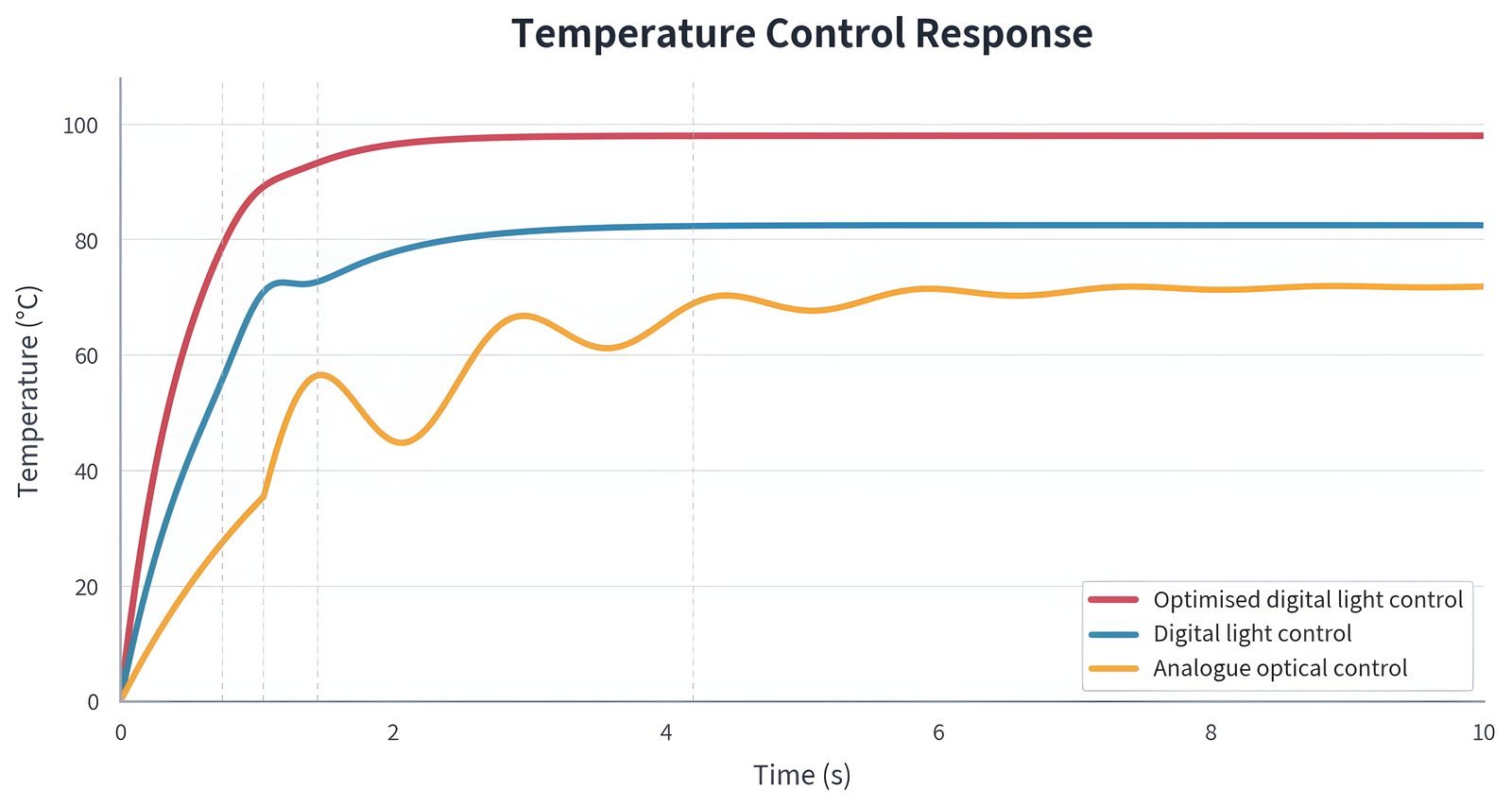

Better stability in graphite furnace measurements

+Digital light-control heating programme with real-time temperature correction.

+Temperature correction in the low-temperature stage keeps samples from boiling; optimised digital optical control gives better stability at high temperature.

+Built-in one-touch temperature calibration eliminates differences between graphite tubes.

+Furnace temperature is controlled from a mathematical model based on the integral algorithm.

Built in

8-lamp holder design

+One-click automatic lamp-position switching; eight lamps can be lit or pre-heated simultaneously, shortening preparation time.

+Patented coded lamp feature recognises element lamps automatically by barcode.

Safety protection system

+Real-time monitoring of air pressure, acetylene pressure, water seal level and flame status.

+Dedicated combustible gas sensors monitor for gas leaks.

+Automatic interlock and flame extinguishing on any abnormality or power loss.

+An air buffer tube supplies about five seconds of auxiliary combustion gas on sudden power loss.

Pneumatic graphite furnace

+Software-controlled one-button opening and closing of the furnace body for convenient graphite tube replacement.

+Sealed furnace chamber design enhances measurement sensitivity.

In-furnace observation camera

+Convenient adjustment of the injection needle position and observation of the injection.

+Real-time monitoring of the temperature ramp inside the furnace chamber.

Accessories

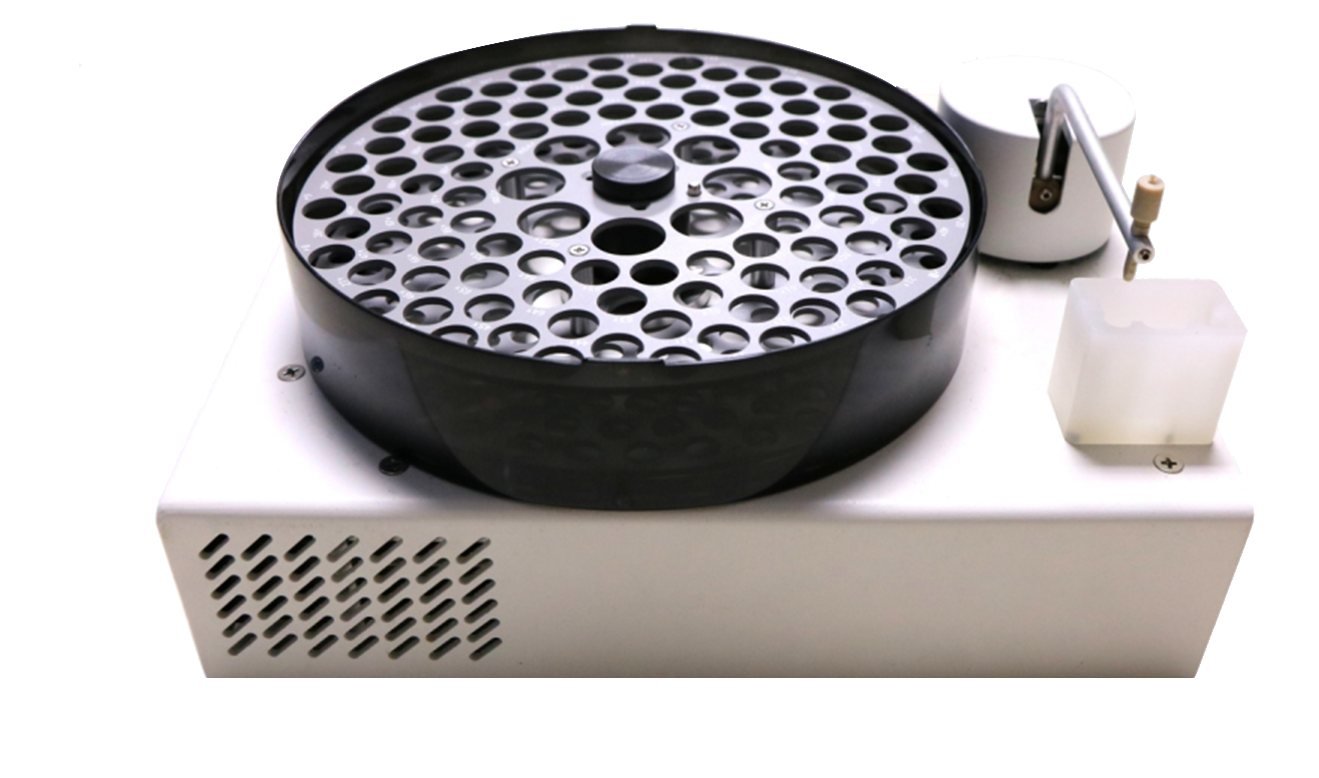

AS 2300

Graphite furnace autosampler

+Suspension design allows installation and removal within three seconds.

+Compact exterior with a multi-position sample tray.

+Capillary syringe tubing with low adsorption and low residue, and easier positional adjustment.

+Online dilution with automatic addition of multiple matrix modifiers — calibration curves from single-point online dilution.

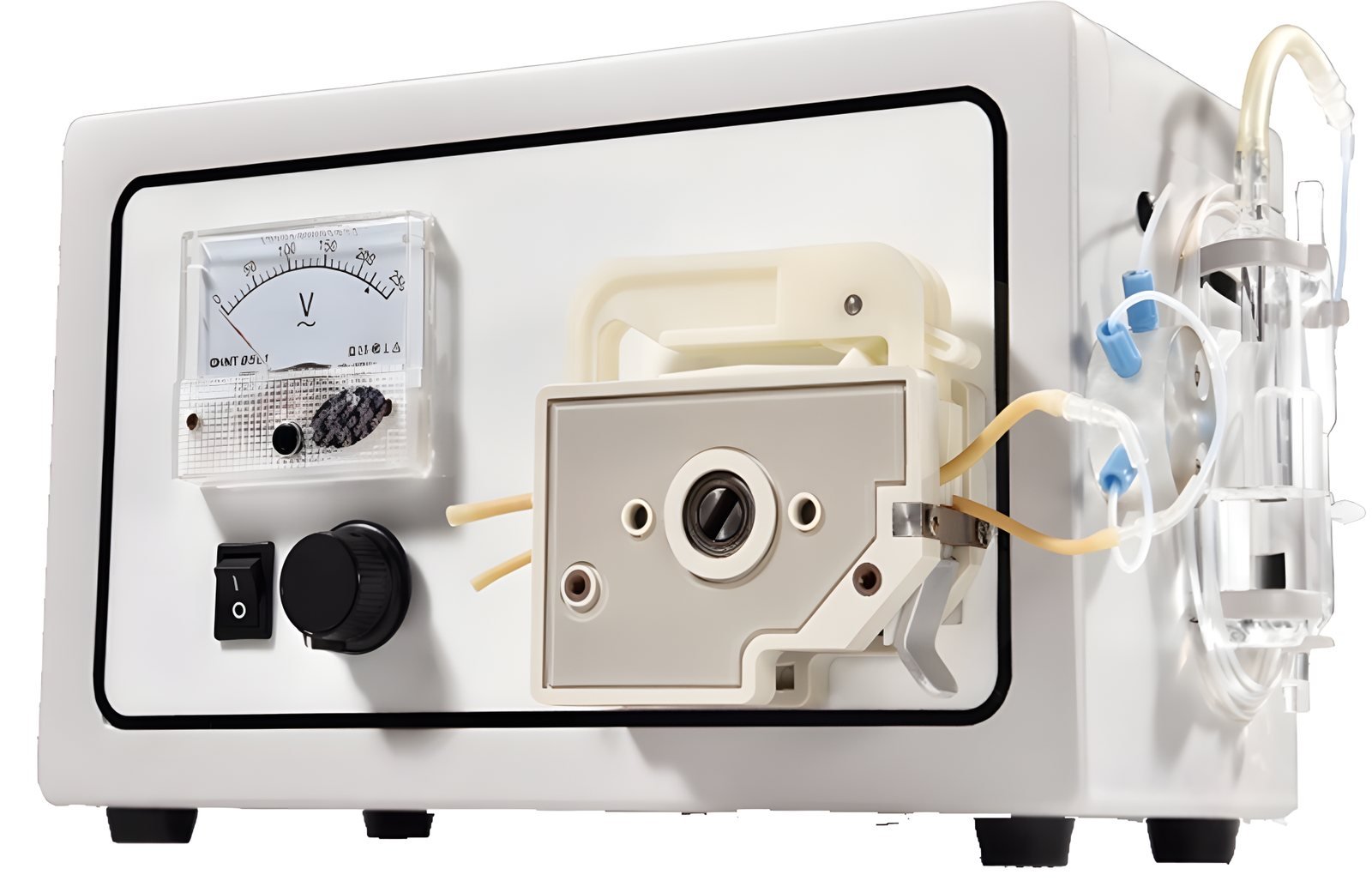

HVG-A

Continuous flow hydride generator

+Trace arsenic, mercury, bismuth, antimony, germanium, selenium, lead and other hydride-forming elements, with low detection limits and excellent stability.

+Ten-stage adjustable flow rates conserve sample solution.

+Peristaltic pump continuous sampling for signal stability with minimal memory effects.

+Compact, electrically heated quartz absorber tubes for simple assembly and temperature stability.

+Stand-alone external design, usable with many atomic absorption spectrophotometers.

Measured performance

According to HJ 168–2020 technical guidance for environmental monitoring methods, soil standard samples GSS-5 and GSS-16 were measured for thallium. The limit of detection was 0.0384 mg/kg and the average accuracy results fell within the certified value ranges.

Accuracy measurements of thallium in soil (mg/kg)

Soil standard

GSS-5

GSS-16

Average value

1.5329

1.1282

Certified value range

1.6 ± 0.3

1.12 ± 0.08

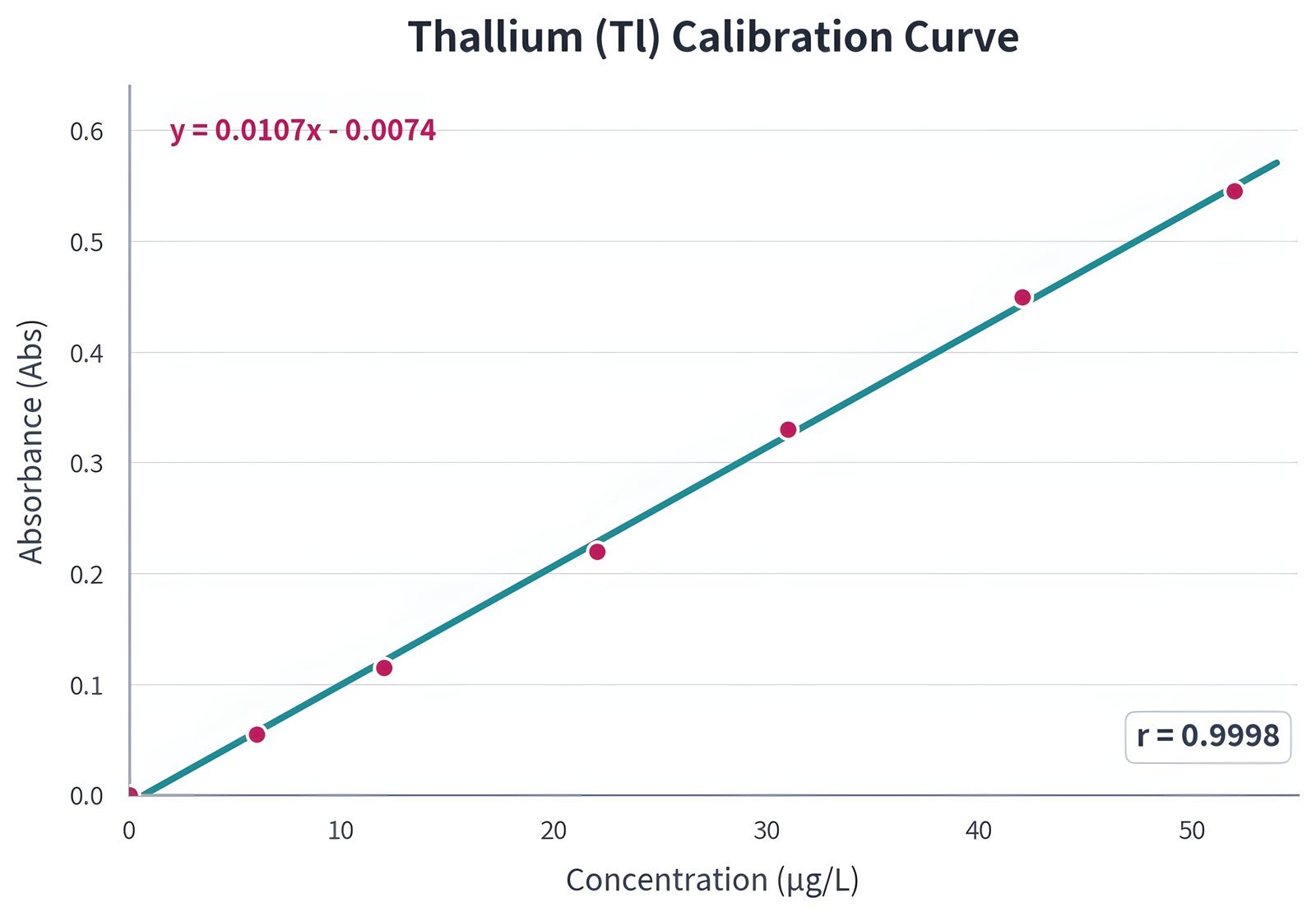

Thallium (Tl) calibration curve, r = 0.9998

Powerful and intelligent software

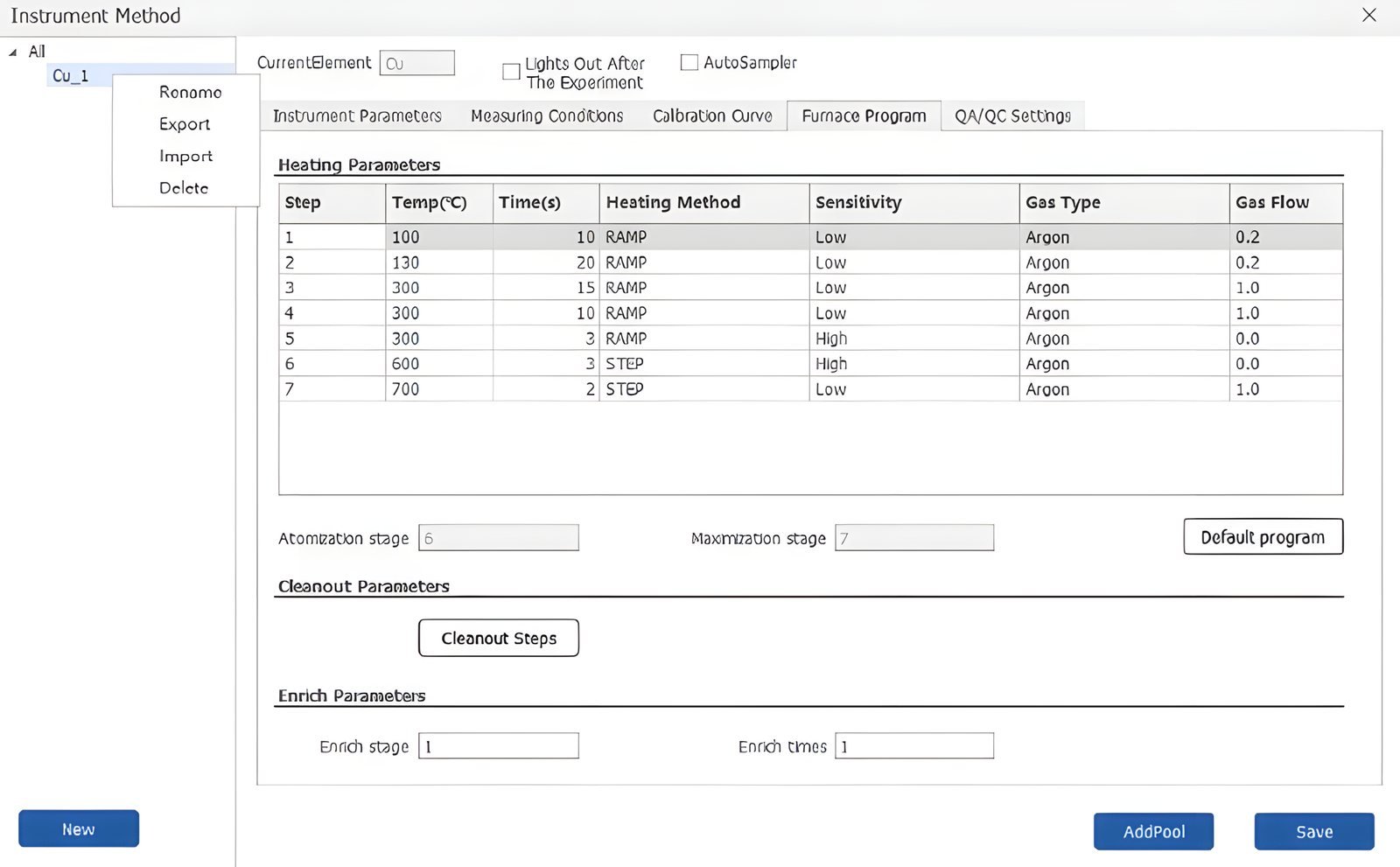

Preset parameters

Optimal parameters are preset for each element — select the element and the measurement type and the method is populated.

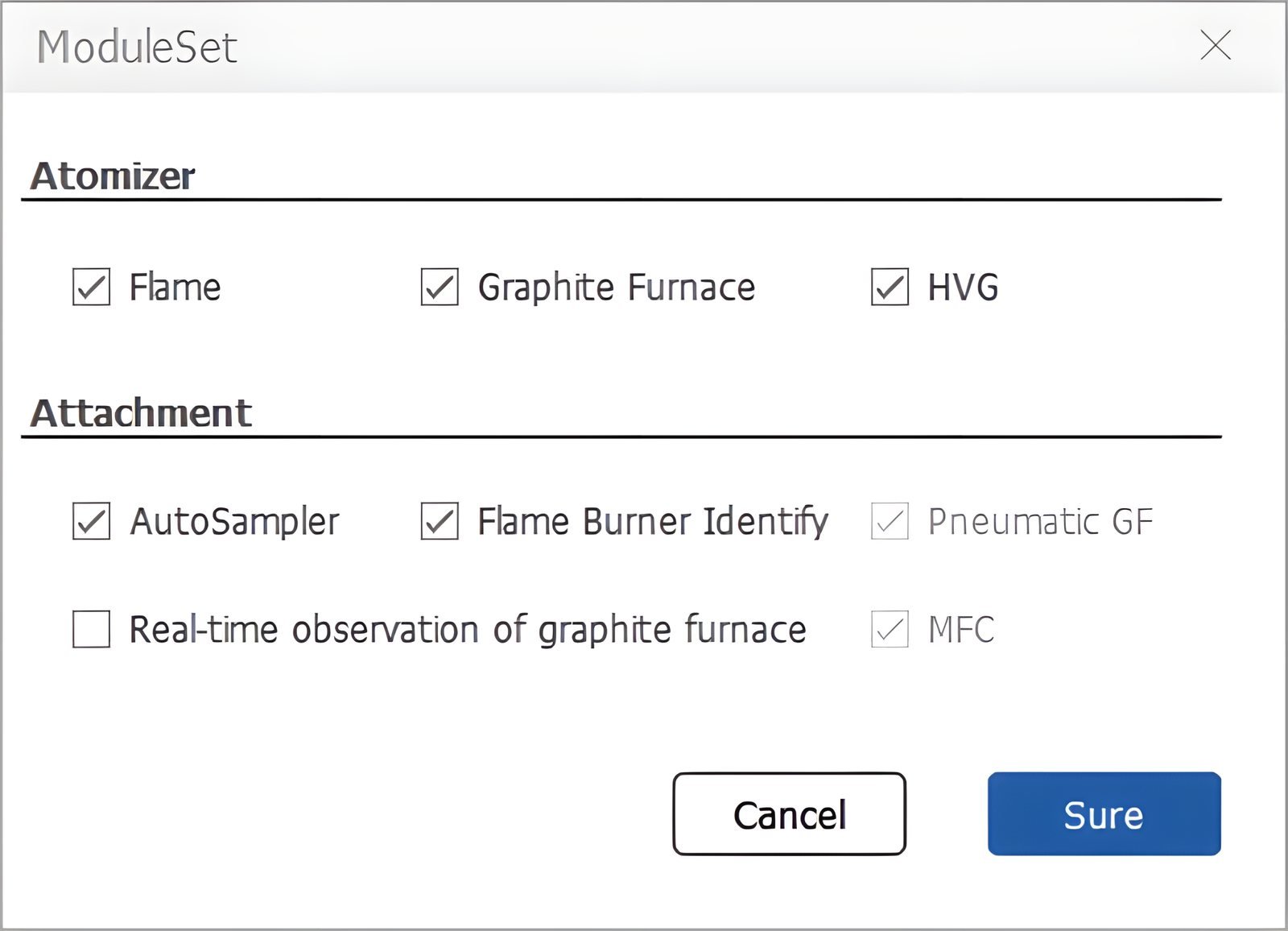

Multi-module accessory configuration

Flame, graphite furnace, HVG, autosampler, pneumatic furnace and mass flow controller modules are enabled from a single dialogue.

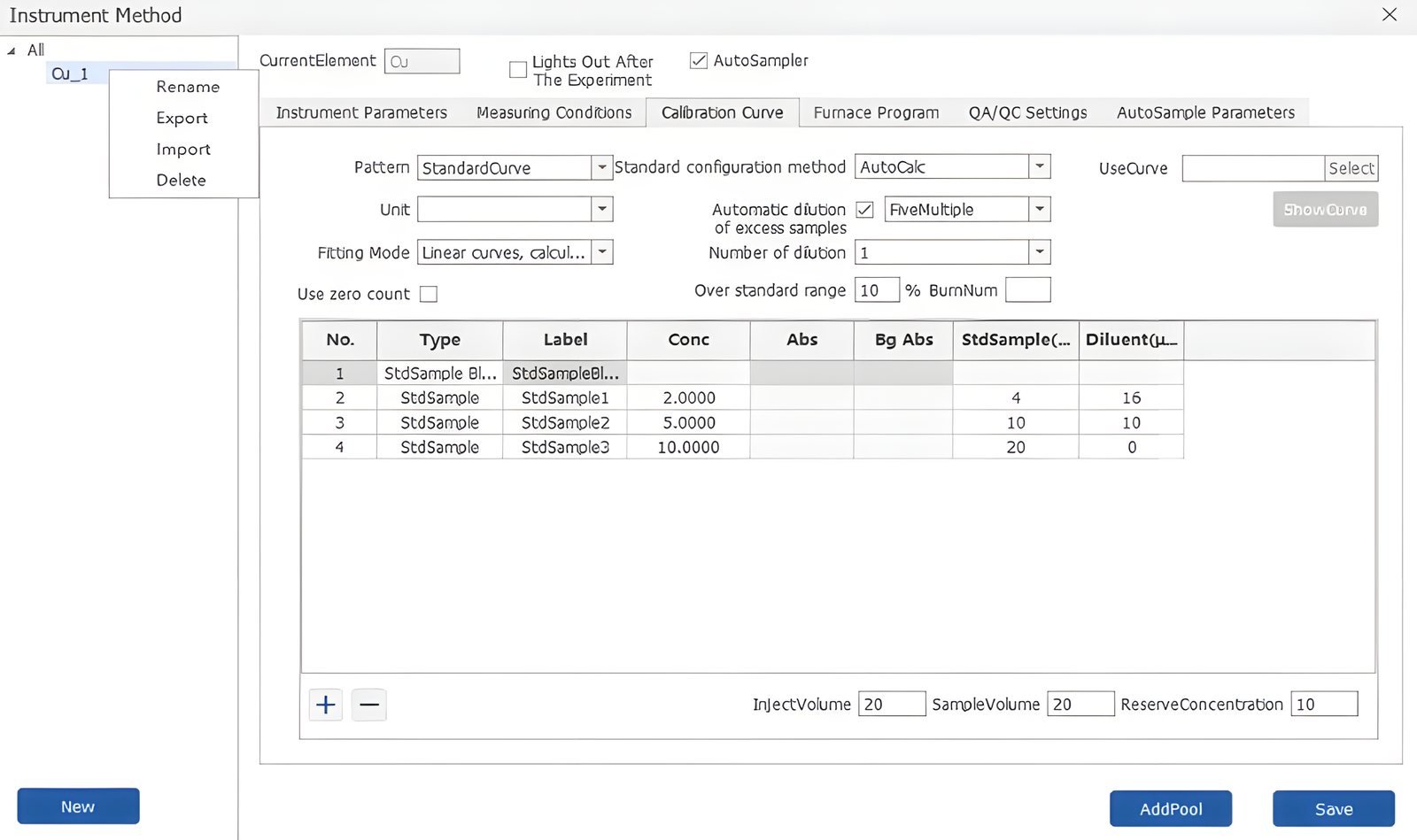

Automatic dilution

Samples above range are diluted automatically with the autosampler. Enter the injection volume and the top standard concentration and the software builds the calibration sequence.

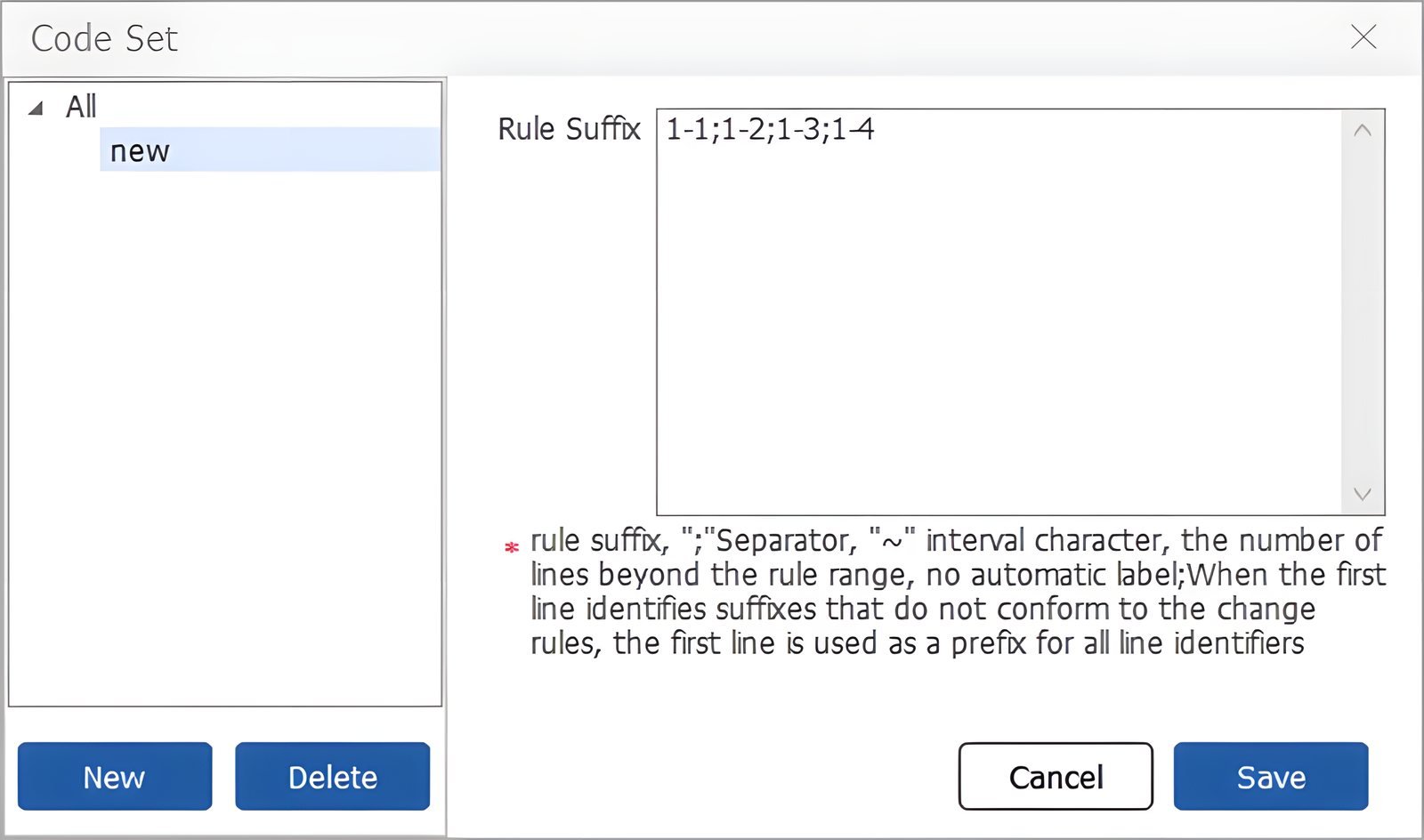

Intelligent coding

Sample sequence rules are recognised, and sequence codes are generated from the entered rule in one click.

Specifications

Optics and lamps

Beam configuration

Optical dual beam (flame); electronic dual beam (furnace)

Lamp holder

8 coded positions, simultaneous pre-heating

Optical platform

Integral aluminium casting

Atomisation

Modes

Flame · graphite furnace · hydride generation

Mode switching

Within one second, automatic positioning

Graphite furnace

Pneumatic, sealed chamber, in-furnace camera

Temperature control

Digital light control with real-time correction

Safety

Monitored

Air and acetylene pressure, water seal, flame status, gas leaks

Response

Automatic interlock and flame extinguishing

Power loss

≈ 5 s auxiliary combustion gas buffer

Configurations

Flame AAS

Optical dual-beam by default; burner and furnace mounted in parallel.

Graphite furnace AAS

Pneumatic furnace with digital light-control heating and one-touch calibration.

Hydride generation

HVG-A continuous flow module for As, Hg, Bi, Sb, Ge, Se and Pb.

Typical applications

+Trace arsenic, mercury, bismuth, antimony, germanium, selenium and lead by hydride generation

+Thallium in soil to HJ 168–2020 (GSS-5, GSS-16)

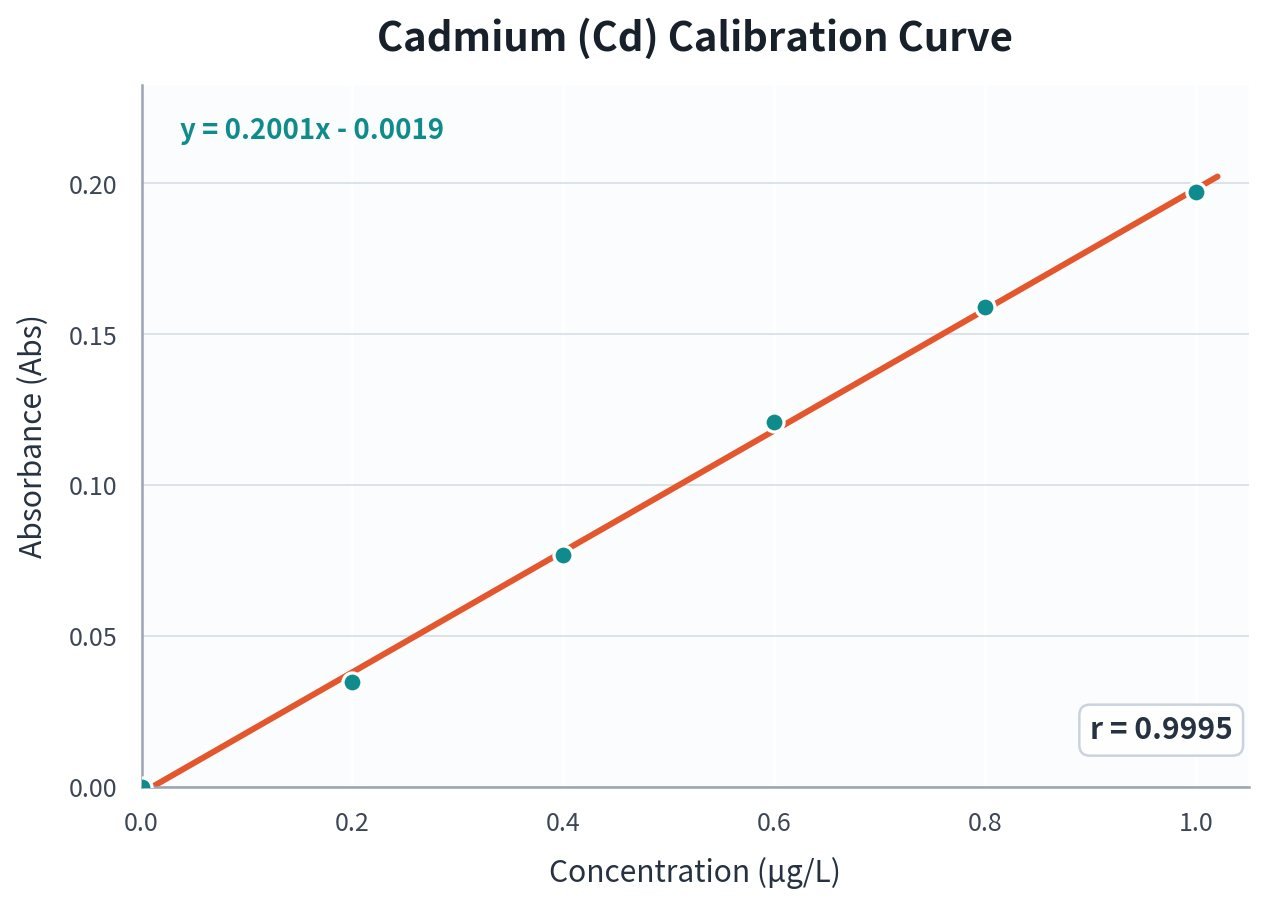

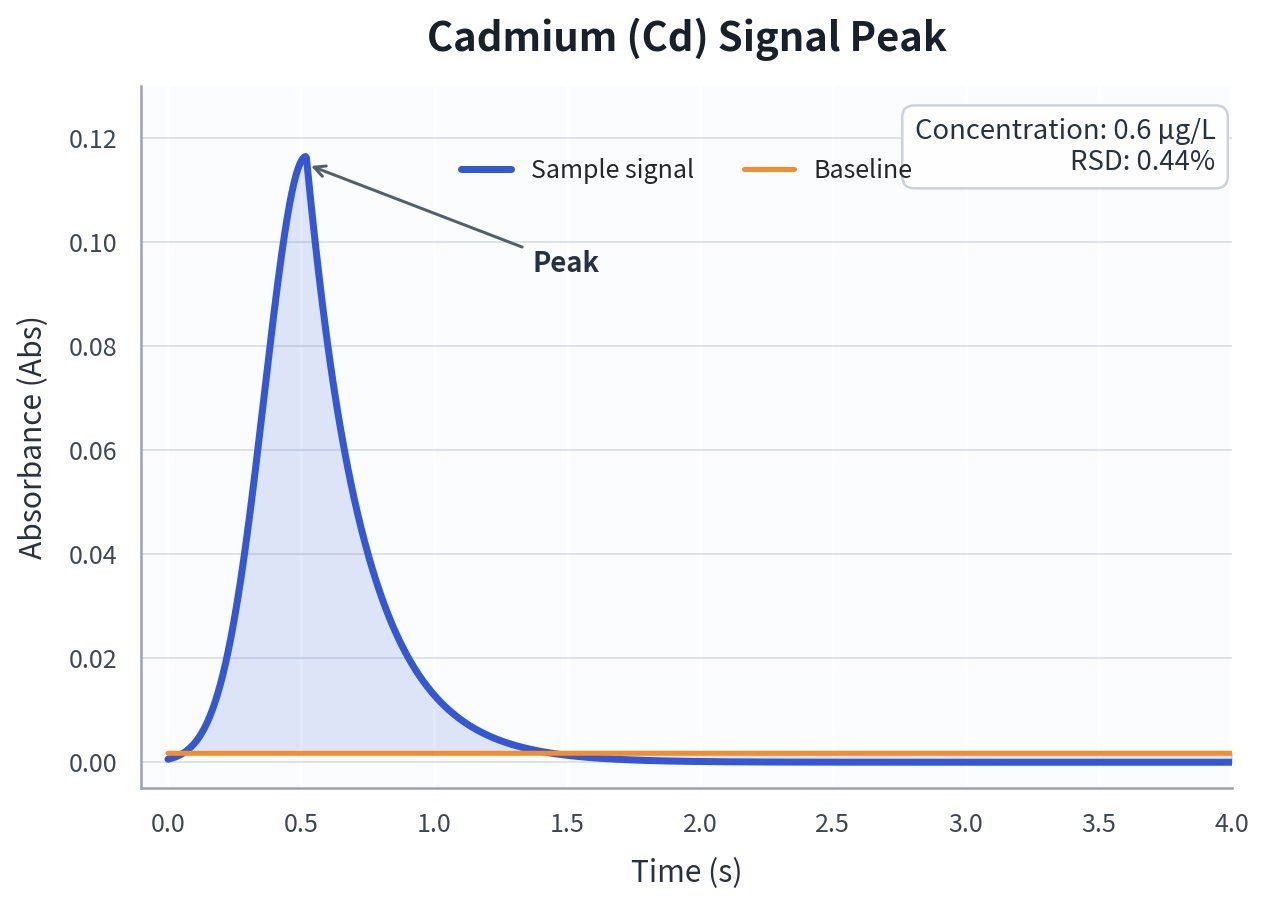

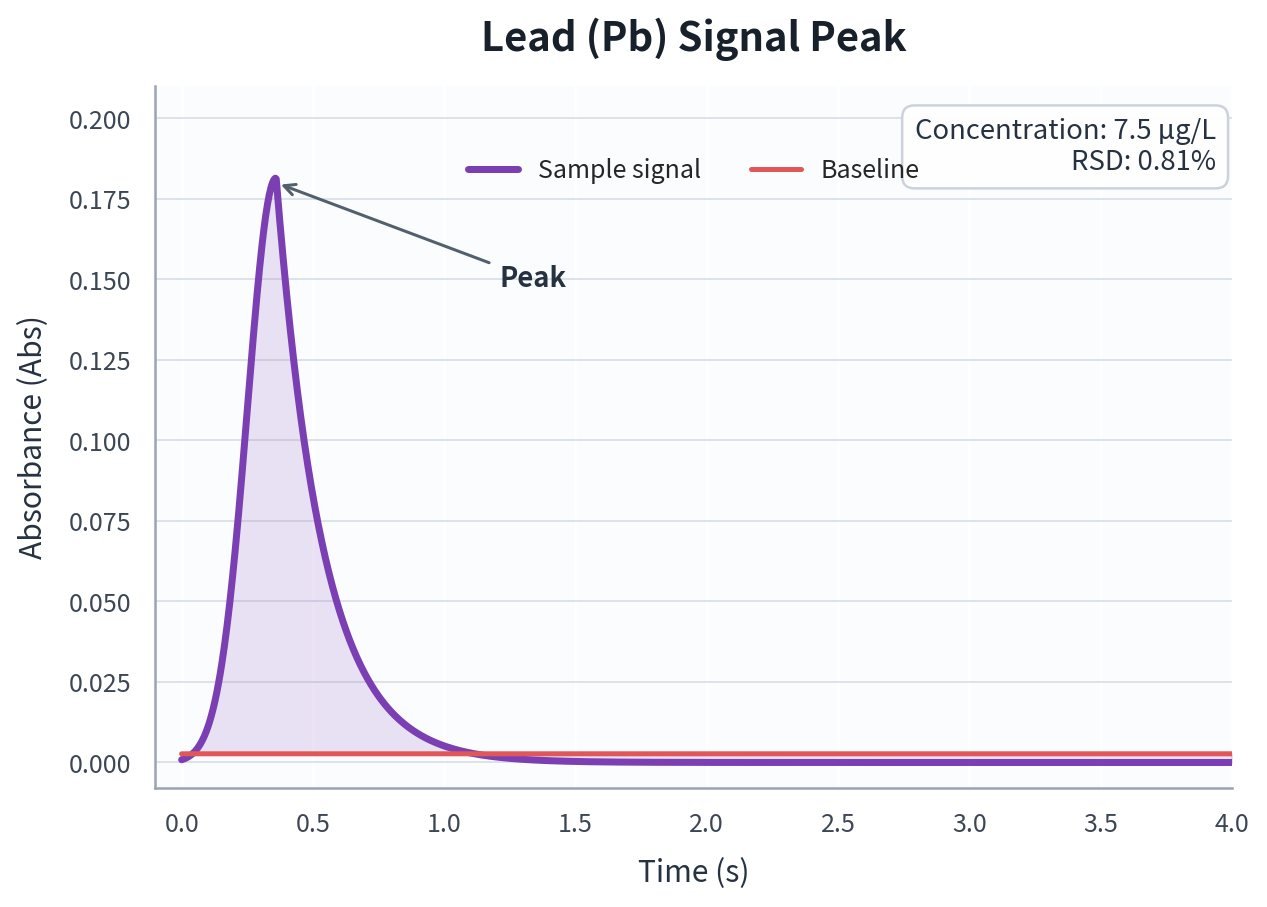

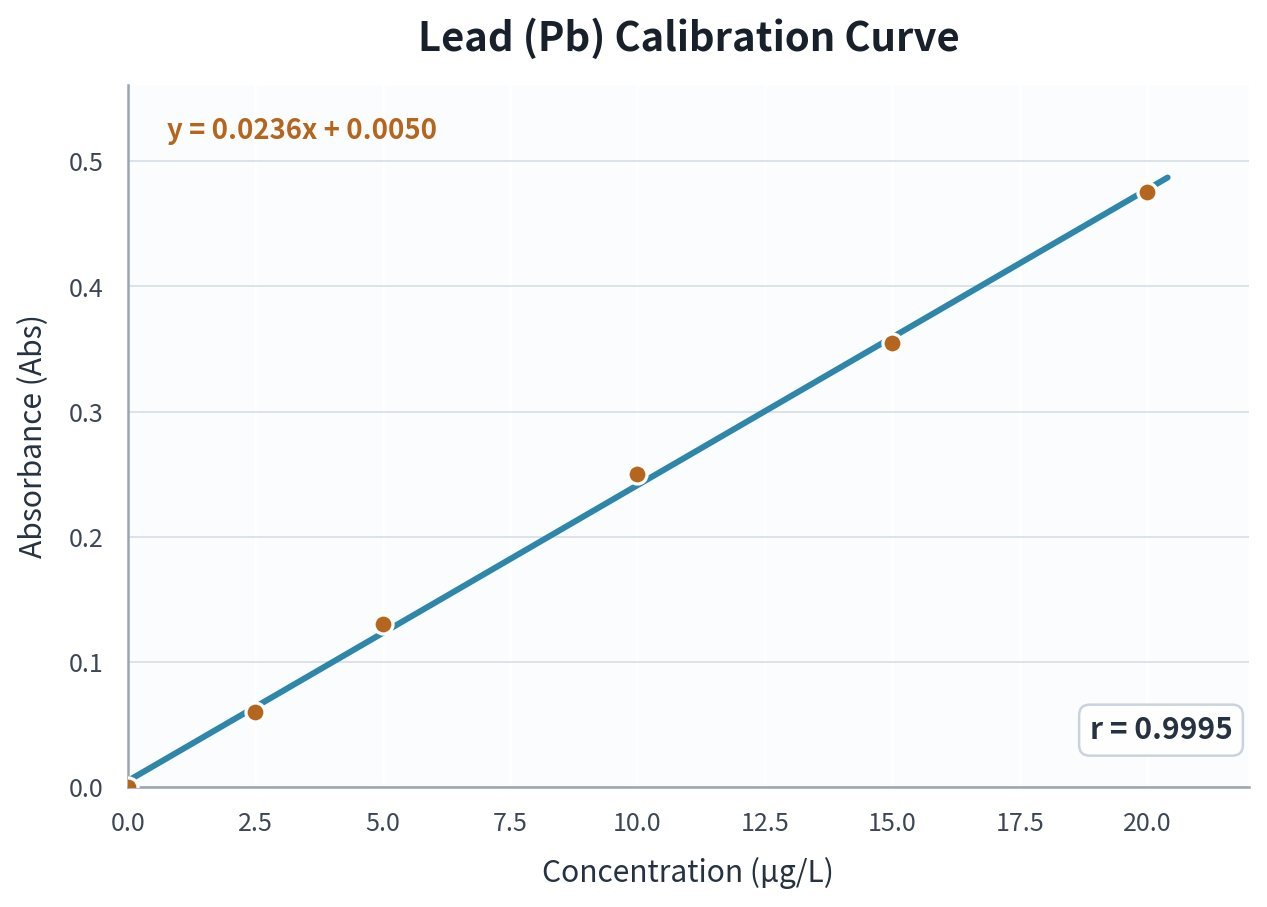

+Low-temperature elements — cadmium and lead — by graphite furnace

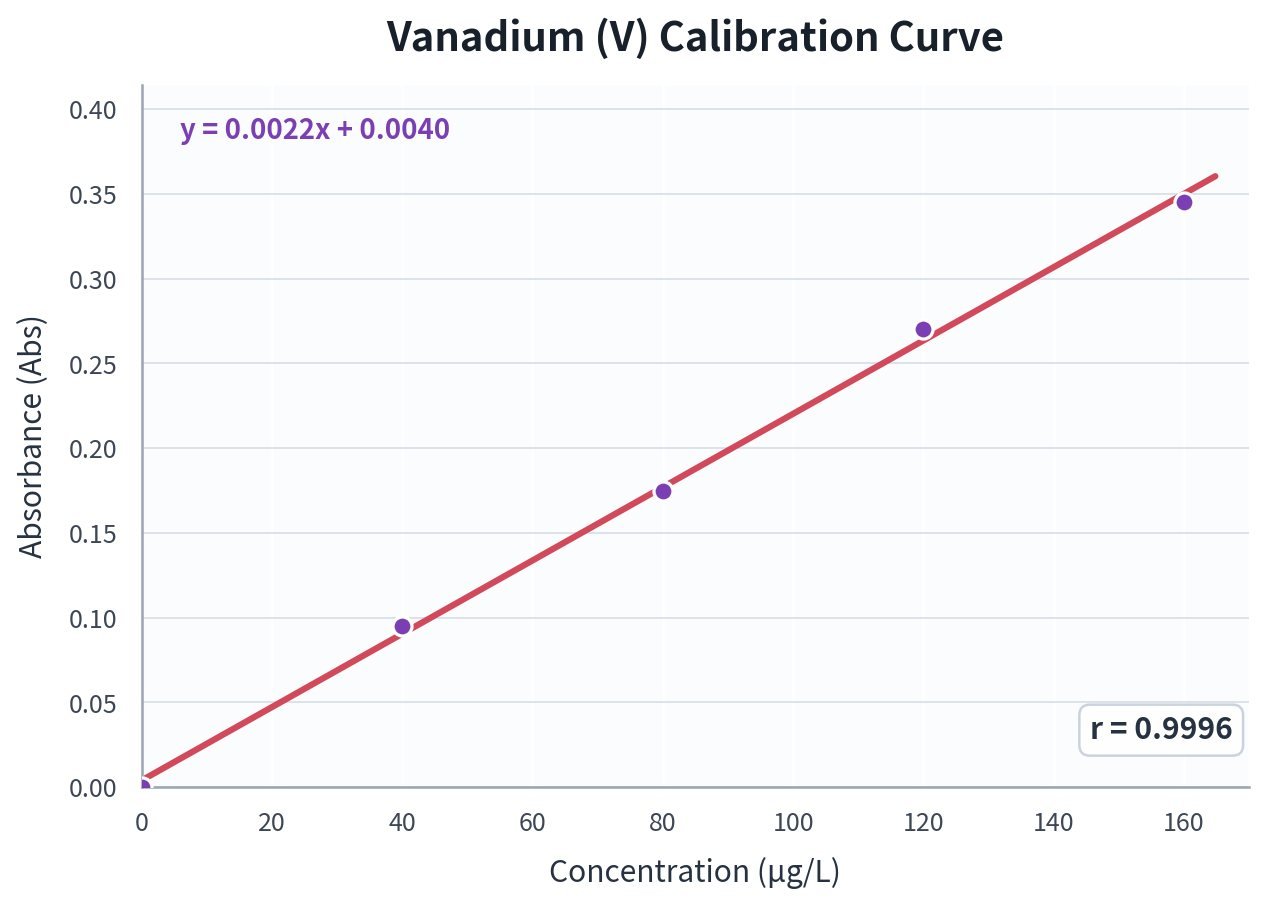

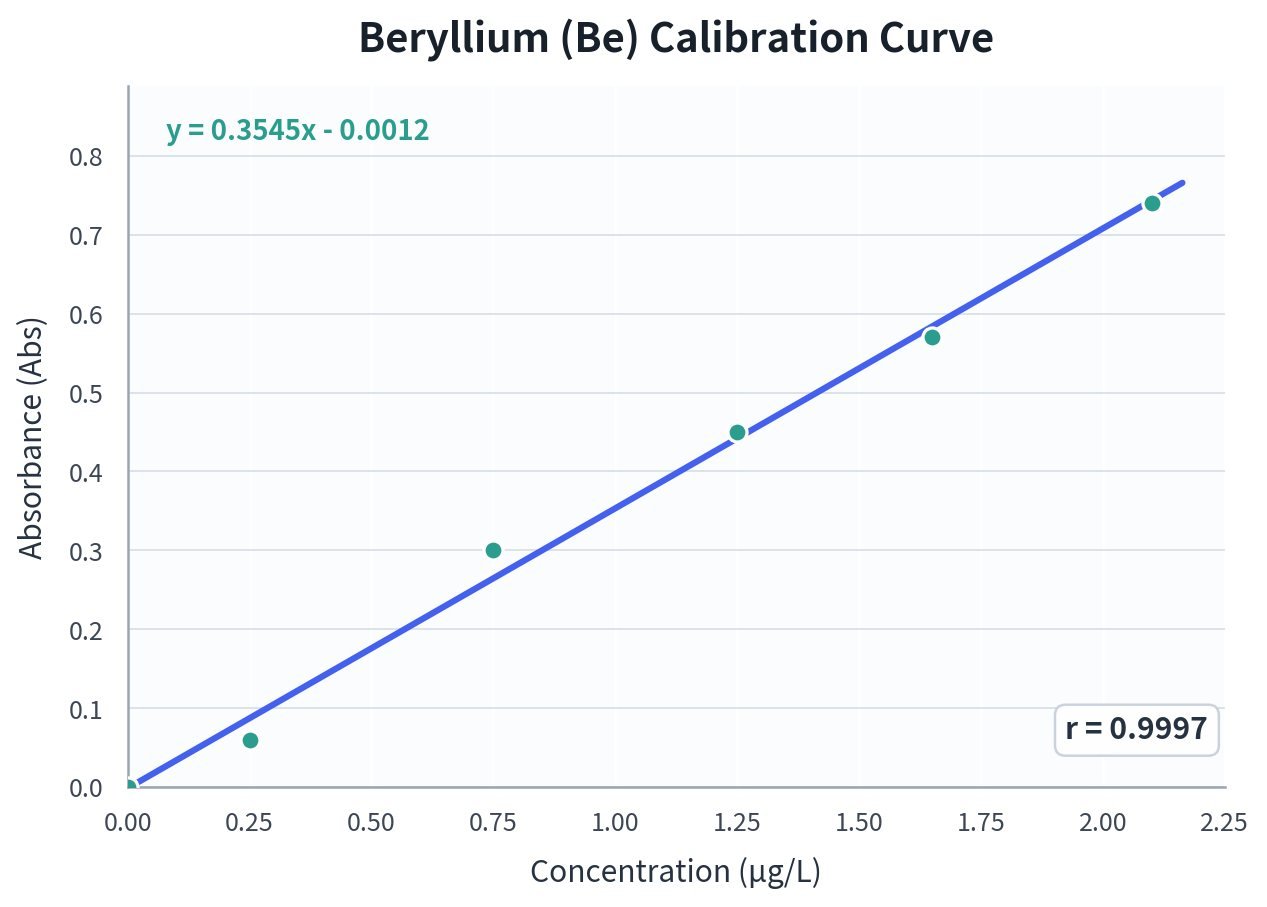

+High-temperature elements — aluminium, beryllium, vanadium — by graphite furnace

+Routine metals by flame atomic absorption

Documentation

M1-AA2300 Series Product Catalogue

CAT-AA2300-EN · 9 pp · PDF 15.6 MB · download form

Technical specification and tender documents

On request · signed specification sheets and compliance statements
